INT-P-ZRG 0P 1P 2P series Push Pull Plastic Connector Male Plug

Short Description:

Model (INT- P-ZRG) Series (0P…2P),Free socket, with cable collet Red, yellow, black, gray, green, gray color nut are optional.


  • Min.Order Quantity: 1 Piece
  • Supply Ability: 30000 Pieces / Month
  • Port: Shenzhen
  • Payment Terms: T/T,L/C,PayPal,Western Union
  • Product Detail

    Product Tags

    P Series Plastic Connector with the following main features:
    1) Small size to accommodate cable diameter up to 6.5 mm and allow up to 14 solder contacts.
    2) Lightweight and rugged materials, rapid push-pull locking system.
    3) Out shell-POLYCARBONATE (PC), Insulator-PPS, RoHS certified can be sterilized by gas or by steam.
    4) The contacts are gold-plated over copper and nickel.
    5) Straight and Elbow; PCB and Solder contacts.
    6) At least 2000 mating/ unmating cycles without significantly affecting the electrical characteristics.
    7) A keying system combined with colour coding can be prevention of mismating.
    Product size:
    PRG

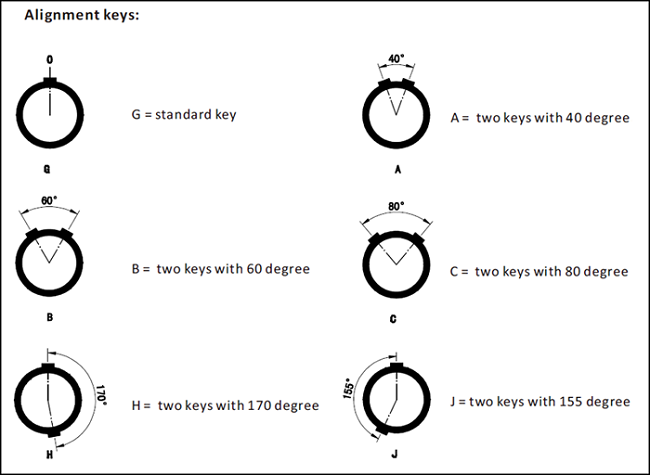

    Plastic connector key1
    Note: All our part numbers begin with” INT-”, for example: INT-P-ZRG.M0.5GL.LC52A
    “52” mean the size of cable collet 5.2MM (request for cable diameter).
    Color options: G (Grey),N (Black),A (Blue),J (Yellow),R (Red),V (Green), B (White).

    INTE-AUTO has designed, manufactured and distributed circular plastic Push-Pull connectors; they are especially adapted for applications such as medical electronics and test & measurement. We offer a wide choice of connectors with various contact configurations, multipole contacts and fluidic connectors. In addition, a range of one time use connectors and connectors for mains power is available. The plastic connectors are available in two sizes, depending on the cable diameter.
    Industry Application:
    It has 2,3,4,5,6,7,8,9,10,14 pins for your choice, which can widely used in medical ECG equipment, detection systems, test system, instrumentation, endoscopy, computer systems, electronic / mixed coaxial unlimited equipment and so on.
