INT-BP12 NIBP Connector for Industries with Wind (water) Piping Interconnection.

Short Description:

NIBP connector for GE BP12 / PHILIP / MINDRAY ECG equipment, medical connector

  • Min.Order Quantity: 1 Piece
  • Supply Ability: 30000 Pieces / Month
  • Port: Shenzhen
  • Payment Terms: T/T,L/C,PayPal,Western Union
  • Product Detail

    Product Tags

    NIBP connector with the following main characteristics:
    BP connectors are widely used in medical appliances and instruments and industries with wind (water) piping interconnection.quick connection and disconnection, push-pull.
    Technical specifications:

    Barb Diameter 5.00mm or 4.00mm
    work temperature -20℃ ,+120
    certifications RoHS compliant
    Material connector copper alloy housing, nickel plating
    Distal Connector 1 Male, Metal, Quick Disconnect (Bayonet)
    Kind of packing bag
    Packing unit 1
    Weight 0.01 KG
    life cycles: 1000 Times

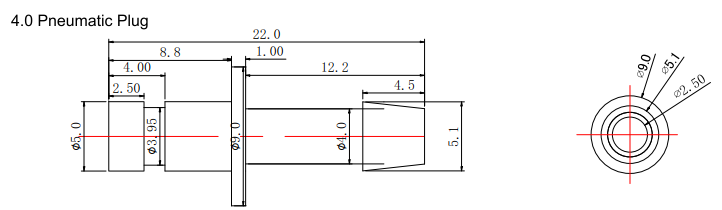

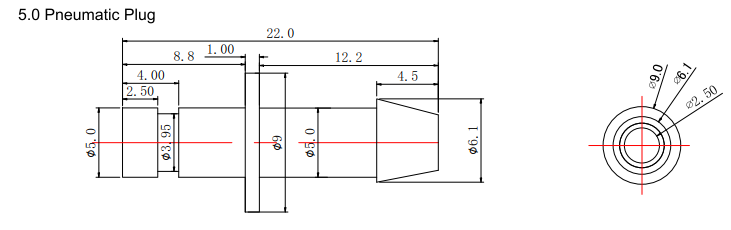

    Product size:
    4.0 plug 5.0 plug

    INTE-AUTO design, manufacture and distribute high performance push-pull connector and cable assembly solutions. Known for their quality and ruggedness, our products prove to be reliable in the most demanding environments. Keep high quality with competitive price and fast shipping to cost down and shorten lead time.
