Push-Pull Self-Latching Connection System

Short Description:


  • Min.Order Quantity: 1 Piece
  • Supply Ability: 30000 Pieces / Month
  • Port: Shenzhen
  • Payment Terms: T/T,L/C,PayPal,Western Union
  • Product Detail

    Product Tags

    Drawing

    Specification

        EngagingThe self-latching system allows the connector to be mated by simply pushing the plug into the receptacle.
      LatchedOnce firmly latched, connection cannot be broken by pulling on the cable or any other component part other than the outer release sleeve.
      DisengagingWhen required, the connector is disengaged by a single axial pull on the outer release sleeve. This first disengage the latches and then withdraws the plug from the socket.

    Typical Applications

     03134351    0903134340

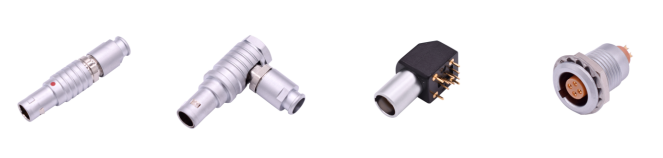

    Series B Metal Connector with the following main features:

    1. The Security rapid push-pull self-locking system;

    2. Soldering and PCB contacts (Straight or elbow);

    3. Multiple key options to avoid cross mating of similar connectors;

    4. The right direction shielding effect, anti-electromagnetic interference;

    5. Series of multi-core, high-density installation space-saving;

    6. Key system (G key standard) for connector alignment;

    7. 360° screening for full EMC shielding;



    Technical Characteristics:

    Mechanical and Climatically

    1. Endurance: > 5000 times;

    2. Humidity : up to 95% at 60 ℃;

    3. Temperature range: -45 ℃~ +125 ℃;

    4. Resistance to vibration: 15 g [10 HZ-2000HZ];

    5. Shock resistance: 100 g, 6 MS;

    6. Salt spray corrosion test: > 48h;

    7. Protection index (mated): IP50.

    Series B Metal Connector with Multiple pins for your selection:

    00B Series: 2、3、4 Pins

    0B Series:  2、3、4、5、6、7、9 Pins

    1B Series: 2、3、4、5、6、7、8、10、14、16 Pins

    2B Series: 2、3、4、5、6、7、8、10、12、14、16、18、19、26、32 Pins

    3B Series: 2、3、4、5、6、7、8、9、10、12、14、16、18、20、22、24、26、30Pins
