INT-P-TAG Blue Color Multipin Plastic Push Pull Connector

Short Description:

Model (INT- P-TAG) Series (0P…2P), Straight plug,cable collet,One Keys (alpha=0).


  • Min.Order Quantity: 1 Piece
  • Supply Ability: 30000 Pieces / Month
  • Port: Shenzhen
  • Payment Terms: T/T,L/C,PayPal,Western Union
  • Product Detail

    Product Tags

    P Series Plastic Connector with the following main features:
    1) Small size to accommodate cable diameter up to 6.5 mm and allow up to 14 solder contacts.
    2) Lightweight and rugged materials,rapid push-pull locking system.
    3) Out shell-POLYCARBONATE (PC),Insulator-PPS,RoHS certified can be sterilized by gas or by steam.
    4) The contacts are gold-plated over copper and nickel.
    5) Straight and Elbow;PCB and Solder contacts.
    6) At least 2000 mating/unmating cycles without significantly affecting the electrical characteristics.
    7) A keying system combined with colour coding can be prevention of mismating.
    Product size:
    PAG SIZE

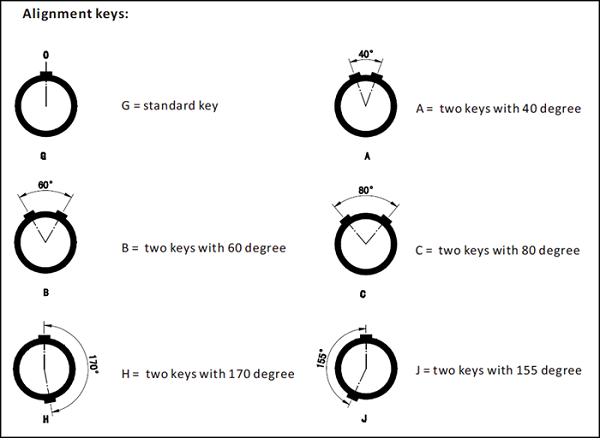

    Multiple Key:
    Plastic

    Note: All our part numbers begin with” INT-”, for example: INT-P-TAG.M0.5GL.AC52A
    “52” mean the size of cable collet 5.2MM (request for cable diameter).
    Color options: G (Grey),N (Black),A (Blue),J (Yellow),R (Red),V (Green), B (White)

    INTE-AUTO has designed,manufactured and distributed circular plastic Push-Pull connectors;they are especially adapted for applications such as medical electronics and test & measurement.We offer a wide choice of connectors with various contact configurations,multipole contacts and fluidic connectors.In addition,a range of one time use connectors and connectors for mains power is available. The plastic connectors are available in two sizes,depending on the cable diameter.
    Industry Application:
    It has 2,3,4,5,6,7,8,9,10,14 pins for your choice,which can be widely used in medical ECG equipment,detection system,test system,instrumentation,endoscopy,computer system,electronic/mixed coaxial unlimited equipment and so on.
