INT-P-TAG Push Pull Plastic Connectors A Nut for Fitting Bend Relief

Short Description:

Model (INT- P-TAG) Series (0P…2P), Straight plug, cable collet, One Keys(alpha=0),Nut for fitting bend relief.


  • Min.Order Quantity: 1 Piece
  • Supply Ability: 30000 Pieces / Month
  • Port: Shenzhen
  • Payment Terms: T/T,L/C,PayPal,Western Union
  • Product Detail

    Product Tags

    P Series Plastic Connector with the following main features:
    1) Small size to accommodate cable diameter up to 6.5 mm and allow up to 14 solder contacts.
    2) Lightweight and rugged materials, rapid push-pull locking system.
    3) Out shell-POLYCARBONATE (PC), Insulator-PPS, RoHS certified can be sterilized by gas or by steam.
    4) The contacts are gold-plated over copper and nickel.
    5) Straight and Elbow; PCB and Solder contacts.
    6) At least 2000 mating/ unmating cycles without significantly affecting the electrical characteristics.
    7) A keying system combined with colour coding can be prevention of mismating.
    Product size:
    999999

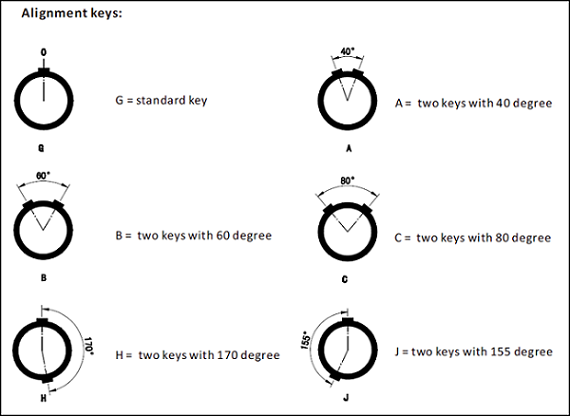

    Multiple Key:

    Plastic connector key
    Note: All our part numbers begin with” INT-”, for example: INT-P-TAG.M0.7GL.AC52GZ
    “52” mean the size of cable collet 5.2MM (request for cable diameter).
    Color options: G (Grey),N (Black),A (Blue),J (Yellow),R (Red),V (Green), B (White)
    “Z” is a nut for fitting a bend relief.

    INTE-AUTO has designed, manufactured and distributed circular plastic Push-Pull connectors; they are especially adapted for applications such as medical electronics and test & measurement. We offer a wide choice of connectors with various contact configurations, multipole contacts and fluidic connectors. In addition, a range of one time use connectors and connectors for mains power is available. The plastic connectors are available in two sizes, depending on the cable diameter.
    Industry Application:
    It has 2,3,4,5,6,7,8,9,10,14 pins for your choice, which can widely used in medical ECG equipment, detection systems, test system, instrumentation, endoscopy, computer systems, electronic / mixed coaxial unlimited equipment and so on.

    Inquiry with INTE-AUTO circular push-pull connectors, aimed at helping get the right suggestion and accurately identify the best connectors solutions and cable assemblies for any harsh environment and application, such as medical, marine, test, military and more.
    INTE-AUTO is a medical plastic push-pull connector manufacturer, improved the quality and regulatory compliance to offer low-cost push-pull connector solutions for the medical devices. Enhanced durability and out shell appearance design is welcomed by our medical customers, the most important that INTE-AUTO win an order from GE group’s supplier. They choose our 1P plastic connectors to use in the Premature Fetal Monitor

    High-Performance China Push Pull Connectors, medical connectors, We warmly welcome your inquiry and will serve you with products and solutions of superior quality and excellent service
